ComboBox

SimpleKivy.SimpleKivy.ComboBox(text='choice0', values=('choice0', 'choice1'), enable_events=True, on_event='text', hint_text='', focus=False, button_width=32, k=None, dark=False, flat=False, **kwargs)

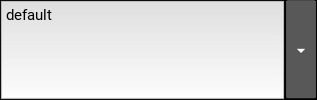

Creates a ComboBox widget (editable TextInput with a DropDown of values to choose from).

Dynamic Creation Parameters

flat: bool

Whether the dropdown button will have a flat style (see FlatButton):

• False: Classic kivy widget style.

• True: A FlatButton is used as the dropdown button.

Default is False.

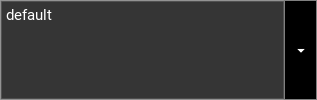

dark: bool

Whether the textinput will have a dark style (see TextInputDark):

• False: Classic kivy widget style.

• True: A TextInputDark widget is used as the textinput.

Default is False.

Parameters

text: str

Text value shown when created.

• str: Text string.

Default is "choice0"

hint_text: str

Hint text of the widget. Shown if text is empty.

• str: Text string.

focus: bool

Wheter widget has focus in the textinput area when created.

• True: TextInput is focused when created.

• False: TextInput is not focused when created.

Default is False

values: list or sequence

A sequence where each element is a string representing the value choices.

• [str, str, ...]: List of strings.

Default value is ('choice0', 'choice1')

size_behavior: str

Defines special bindings for the behavior of text_size and size:

• "none": No binding between text_size and widget size.

• "normal": Binds text_size to widget size.

• "text" or "textv": This widgets’s height will be set to the text content.

• "texth": This widgets’s width will be set to the text content.

Default is “normal”.

k: None, str, or NOTKEY

Key specification for quick acess:

• None: Automatically sets an int value.

• str: Use specific string key.

• NOTKEY: Special flag indicating no key should be used.

size: str or sequence of 2 ints

Size specification of the widget:

• str: "x{width}": Sets widget width and size_hint_x = None.

• str: "y{height}": Sets widget height and size_hint_y = None.

• str: "xchildren": Sets size_hint_x = None and binds this widget’s width to the sum of the widths of its children.

• str: "ychildren": Sets size_hint_y = None and binds this widget’s height to the sum of the heights of its children.

• str: "xchild_max": Sets size_hint_x = None and binds this widget’s width to the child with the maximum width.

• str: "ychild_max": Sets size_hint_y = None and binds this widget’s height to the child with the maximum height.

You can combine up to two of the above size string specifications.

• str: "{number}": Processed as size = (number, number) and size_hint = (None,None). Cannot be combined with other string specifications.

• sequence: (int, int): Size of the widget. Same as Kivy. Has no effect if size_hint argument is not set to None.

Example:

sk.ComboBox(size = "y35")
sk.ComboBox(size = "x120y35")
sk.ComboBox(size = "xchildreny40")
sk.ComboBox(size = "xchildrenychildren")
sk.ComboBox(size = "xchild_maxy40")
sk.ComboBox(size = "60")
sk.ComboBox(size = (120,35), size_hint = (None, None))

enable_events: bool

Whether the widget will send events to the event_manager set in MyApp using the widgets k/id property as event identifier.

• True: Triggers events.

• False: Doesn’t trigger events.

on_event: str, iterable (tuple or list), dict

Defines which events/property changes will trigger the event_manager. Only has effect if enable_events = True.

• str: Name of the event or property that will trigger the event_manager.

• iterable: [str, str, ...]: Will trigger events for each name in the iterable.

• dict: {"{event_name}": callback}: Calls instance.bind(**on_event) during widget creation.

Example:

sk.ComboBox(enable_events = True, on_event = 'width')
sk.ComboBox(enable_events = True, on_event = 'on_touch_down')
sk.ComboBox(enable_events = True, on_event = ['width','height','pos'])
sk.ComboBox(enable_events = True, on_event = {"size": lambda ins,v: print("size =",v)})

do_dot_subevent: bool

Adds a “.” to describe the event when triggering the event_manager.

• True: The event identifier is str(widget.id)+".{event_name}".

• False: The event identifier is the same as the widget’s k/id.

Default is False.

Returns

ComboBox widget created dynamically with the following modifications:

Properties

text (StringProperty) values (ListProperty) focus (AliasProperty)

Events

on_values(ins,val): Fired when changing the values property.

Kivy Bases

• BoxLayout
  • TextInput
  • Button

This page only details the new or modified features. All other parameters inherit from the base Kivy widgets and can be found in the official Kivy documentation.
